Reliable Water Flow Protection, Made Simple!
Building Accurate Flow Testing Equipment & Supervisory Switch Locking Harnesses
The CB-Lock is a locked protective housing constructed using 14-gauge steel plate preventing movement from vandals. The shrouding design allows the housing to slide over the waterflow switch cover easily in multiple directions. Once in place, you can use your selection from most standard sized padlocks to lock it. The bottom lock bar holds the harness securely in place resisting prying for unauthorized access. A vandal or rouge service technician would be deterred from unauthorized access in two ways. First, the presence of the lock will confirm that only authorized access is allowed, and second, the extra layer of protection will prove unauthorized access to be much more difficult to achieve. The CB-Lock supervisory switch harness is a robust deterrent.
Introducing the...

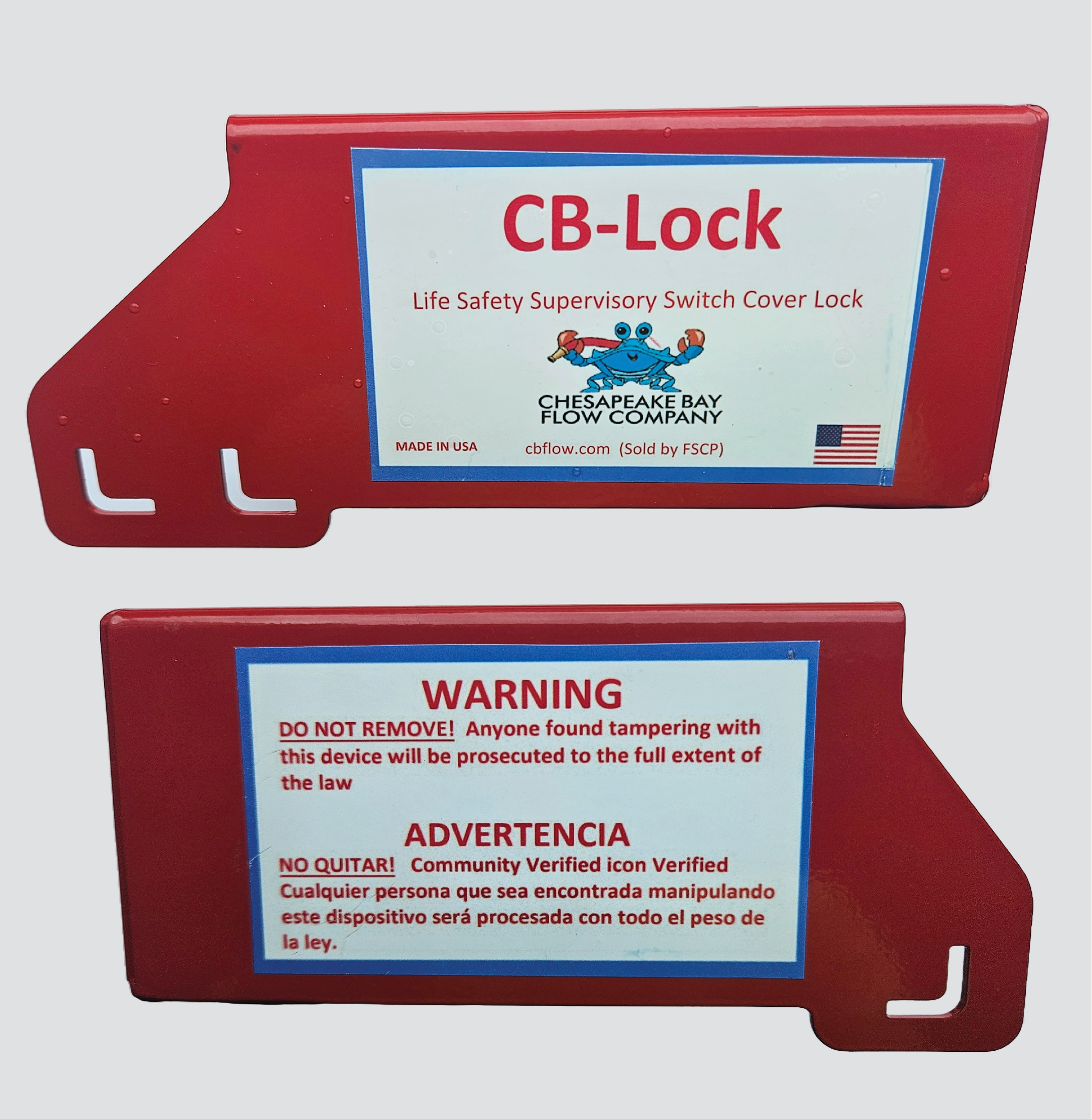

CB-Lock Switch Cover
The CB-Lock is a superior locking mechanism specially designed to protect your internal water flow switch components. Our patented CB-Lock comes in two (2) models and are simple and straightforward that prevents flow-switch manipulation. Our locks deliver sound technology at a low cost. They're so simple, you can purchase and install it yourself; no need to retain a licensed contractor. Just slide it on and lock, it’s that easy to be safe.
Watch CB-Lock Instructional Video on How to Install
(Hearing Impaired? Click here to read while watching this video.)
- There is no need to retain a licensed contractor. Just slide it on and lock, it’s that Easy!
- If a contractor damaged the housing or mounting screws, the CB-Lock will hold the broken switch cover in place. There is no need to replace the flow switch saving you tons of money.
- CB-Lock will work with Potter, Safe Signal and most older System Sensor water flow switches. Soon, CB-Lock will stock cover locks for pressure switches and other supervisory switches. We hope to have them on the market within the next few years.
IMPORTANT: If you believe someone may have manipulated your waterflow switch, it is imperative to retain a licensed professional to perform a series of tests to confirm your water flow switch is functioning properly! Keys to the CB-Lock should only be in the hands of supervisors. Water flow switch cover should never be opened unless service is required.
Here's Why It's Very Important to Protect Your Water Flow Switches...

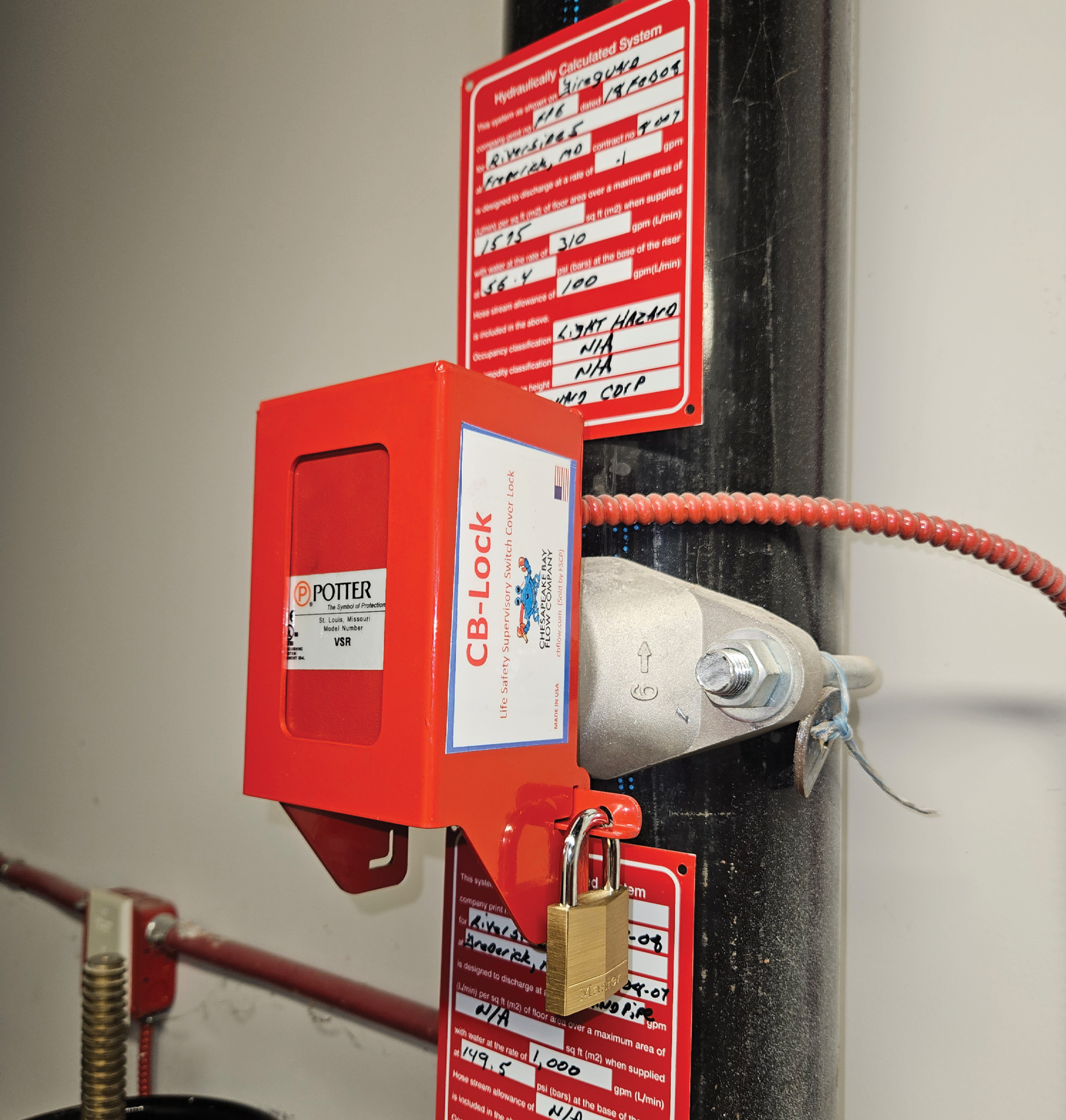

The CB-Lock is a locked protective housing constructed using a 14-gauge steel plate preventing movement from vandals. The shrouding design allows the housing to slide over the waterflow switch cover easily in multiple directions. Once in place, you can use your selection from most standard sized padlocks to lock it. The bottom locking bar holds the harness securely in place resisting prying for unauthorized access. A vandal or rogue service technician would be deterred from unauthorized access in two ways. First, the presence of the lock will confirm that only authorized access is allowed; and second, the extra layer of protection and ensure unauthorized access to be much more difficult to achieve. The CB-Lock supervisory switch harness is a robust deterrent.

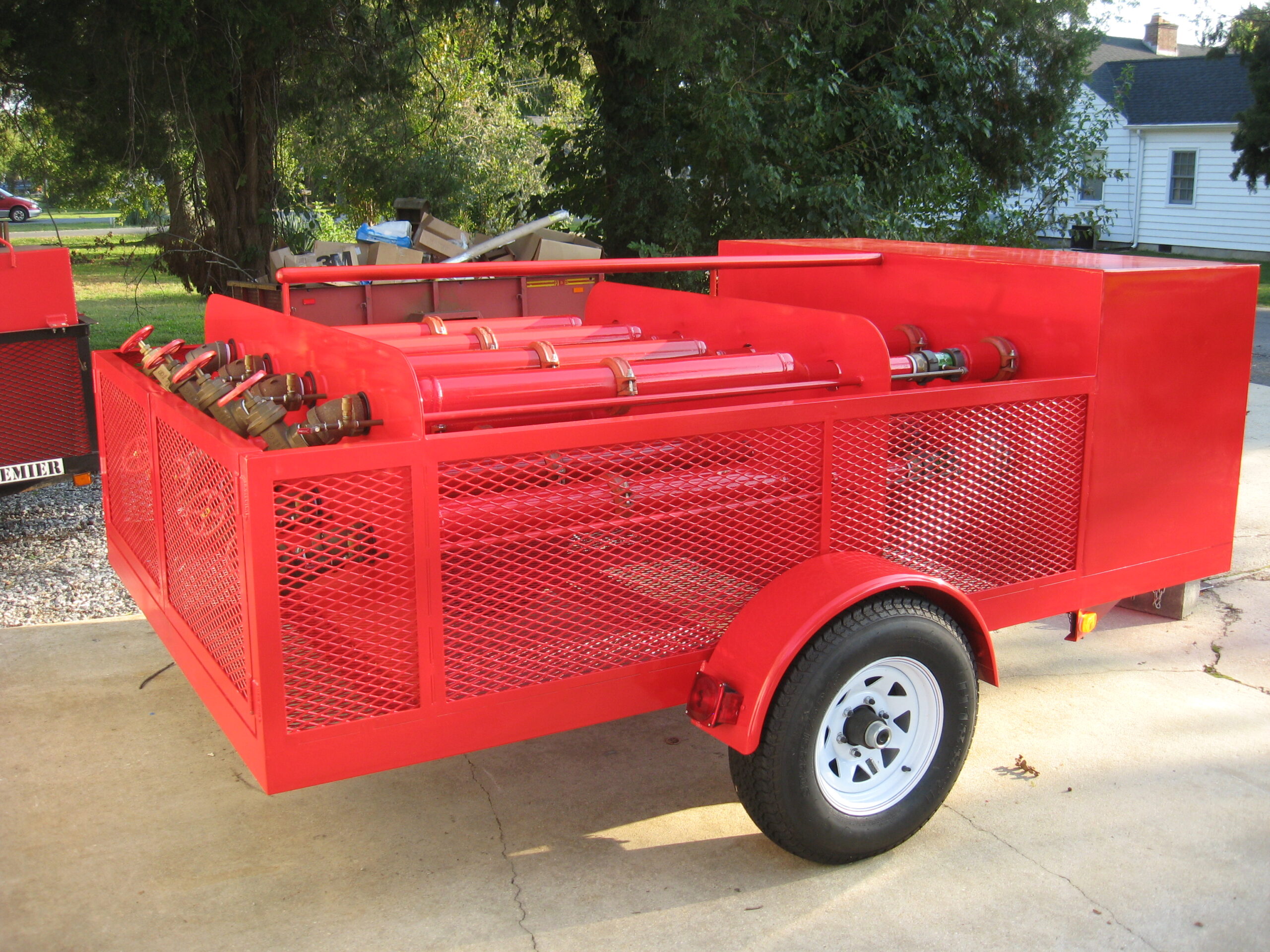

The CB-Flow unit can be custom built to flow whatever you request. This superior unit shown above is the 2000 Series with eight flow tubes using 1-¾ inch pitotless nozzles flowing up to 3750gpm (2500gpm fire pump at 150%). The 1000 Series is constructed with six flow tubes using 1-¾ inch pitotless nozzles flowing up to 2625gpm (1750gpm fire pump at 150%). However, both units are able to flow over additional water based on the pitot unit requested.
CB-Flow Fire Tester
Accurate, simplified testing with reduced costs
The CB-Flow Unit offers accurate testing, simplifies testing procedures, reduces costs, and boosts your company image. The CB-Flow unit is the finest fire pump test trailer available in today's market — featuring impressive speed, precision accuracy, and ease of use. Also, this environmentally-enhanced unit saves you money while increasing revenues.
Watch the CB-Flow Video on YouTube
| NOT AVAILABLE FOR SALE AT THIS TIME
Have Questions about Our Products?
We'd love to talk with you about our CB-Lock or CB-Flow units. Submit your question or leave your contact info, and someone will get back to you very soon.
